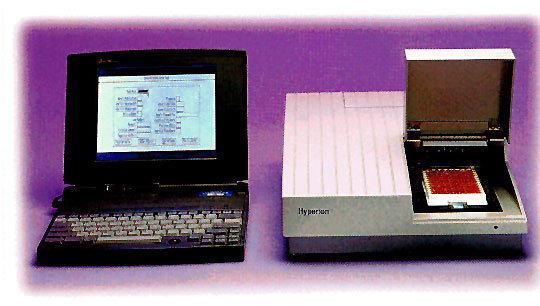

MicroReader 4 Plus supplied with ELISA-FLEX™ Software, PC Interface Cable and power cord. Sample Size: 1 Standard 96-Well Microplate. Applications: Absorbance, Concentration Curve, Single-point Concentration, Qualitative (Cutoff) Test. Photometric Methods: Monochromatic & Bichromatic, within the wavelength range of 400nm to 700nm. Measurement Range: Indicated Range: 0 to 4.0 OD (>3.000 OD for informational purposes only.) Accuracy: ± 2.0% or ± 0.010 OD whichever is greater, in the range of 0.1 to 2.5 OD at 405nm. Reproducibility: |
Linearity: ± 1.25% of range, in the 0 to 2.0 OD range at 405nm. Reading Time: Full Plate: Less than 20 second, bichromatic. Light Source: Tungsten Halogen Lamp. Filter Capacity: 6-position Filter Wheel, with 6-interference standard filters: 405nm, 450nm, 490nm, 540nm, 630nm and 650nm. (Other wavelengths, from 400nm to 700nm, are available by special order.) Power Supply: 115V/230V ±10%; 60/50Hz. Dimensions & Weight: 5" (12.7cm) High; 13.5" (34.4cm) Wide; 16" (40.64cm) Deep; 18 Lbs (8.2 Kg). Interface Ports: 1 Serial Port (Bidirectional). ELISA-FLEX™ Software: Open Programming Format with sophisticated quantitative (including curve-fitting) and qualitative (including check equations) capabilities for the performance of most immunoassays. |
Computer Requirements: 386 or 486 IBM® compatible (including Lap Tops), with minimum 6 MB hard disk space available and 3.5", 1.44MB floppy disk drive, 4MB of RAM and DOS 6.2 or greater operating system. Monitor: 14" VGA Monitor (Monochrome or Color). Computer Ports: 1 serial (MicroReader 4 Plus interface) and 1 parallel port (printer interface).
HyPrep™ Plus Option:
|
IBM is a registered trademark of International Business machines; Others are trademarks of Hyperion, Inc.
|
Hyperion, Inc., 14100 S.W. 136th Street, Miami, Florida 33186 Copyright © 1997 - 2002, Hyperion Inc. |
